1:500 Scale

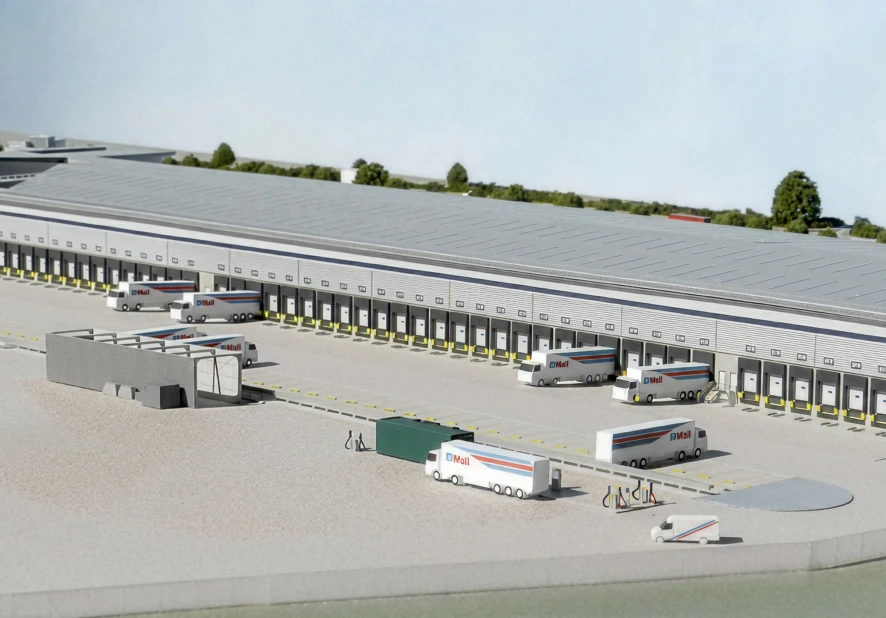

For models of unusually large buildings, such as the logistics warehouse above, or for models of large development areas, 1:500 scale allows us to show a good level of recognisable, if slightly simplified, detail whilst keeping the model at a manageable size.

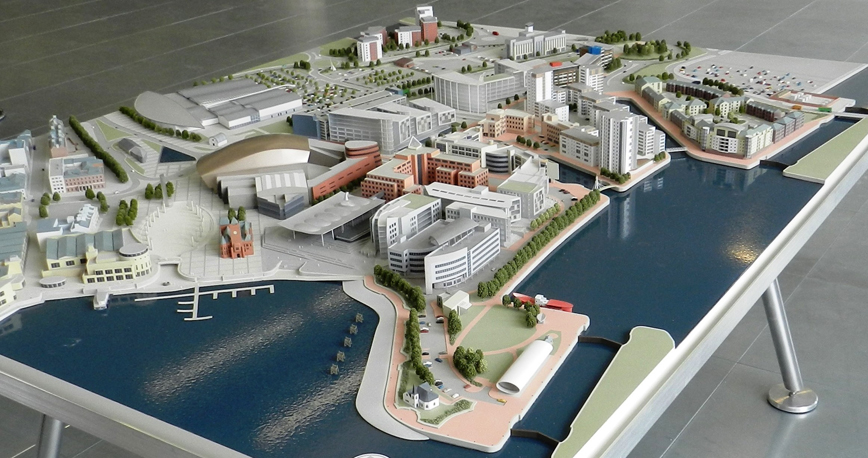

For example, the marketing model below shows the site with plenty of surrounding context but is less than 2 metres x 1.5 metre so fits well in a marketing suite.

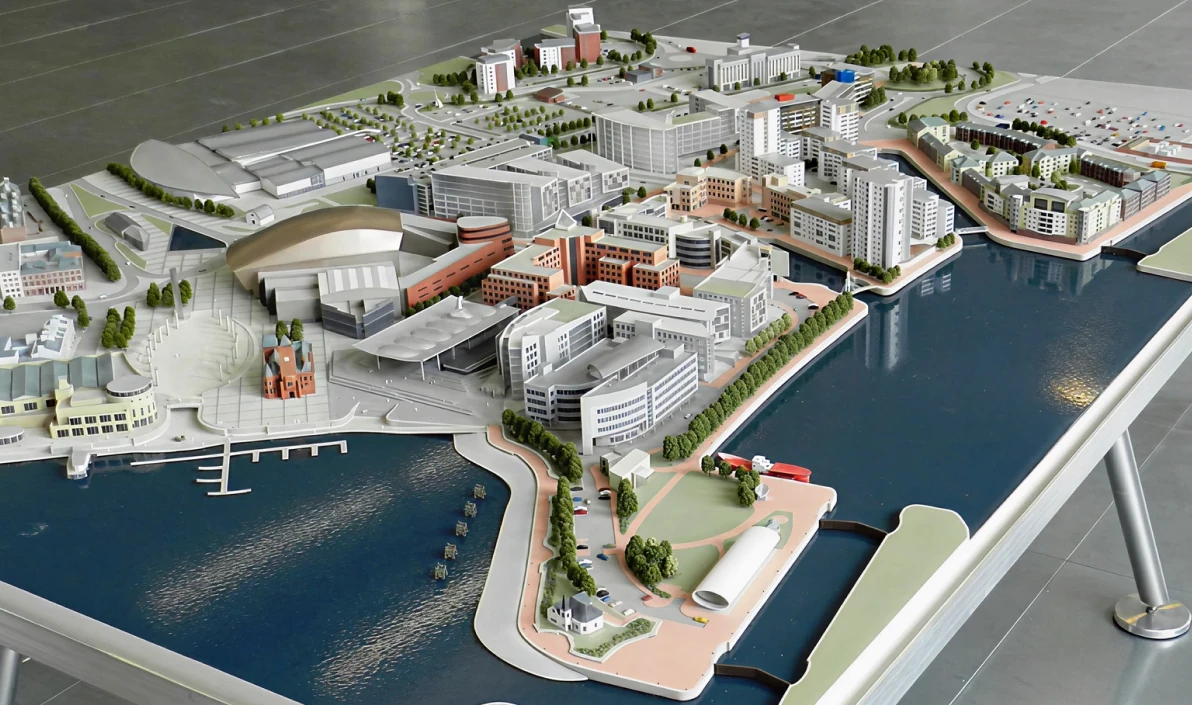

Built to illustrate the proposed scale of several major development areas in a prime waterside location, this model used illumination to highlight the key sites in the project. Each of 11 different plots can be illuminated individually at the touch of a button.

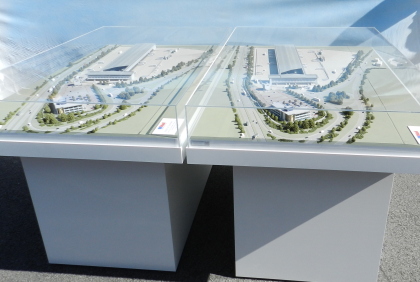

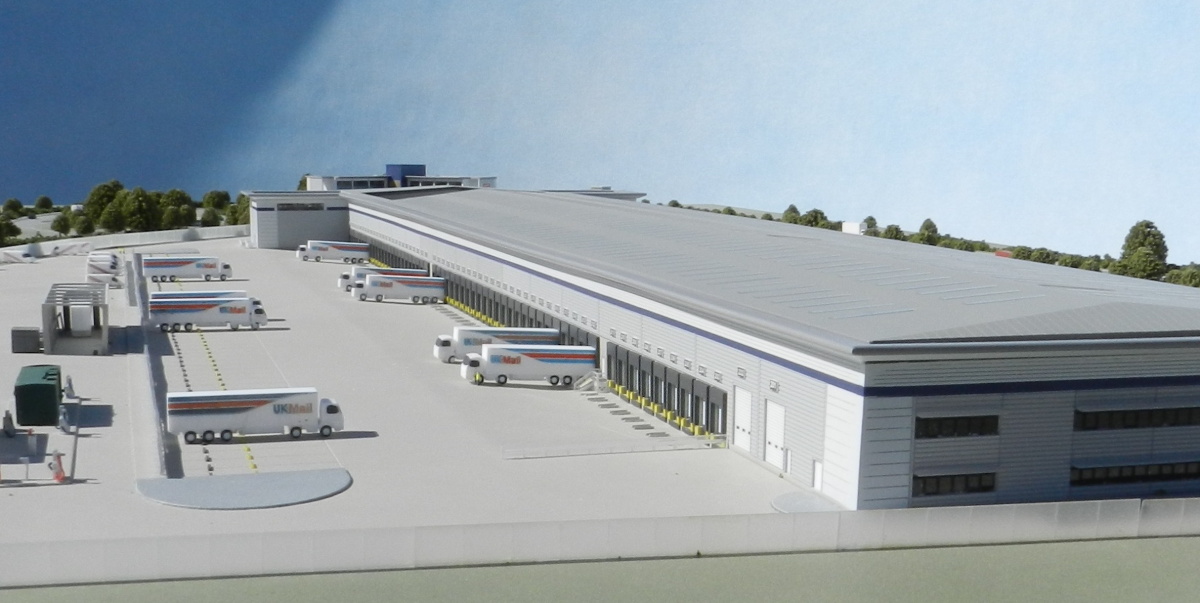

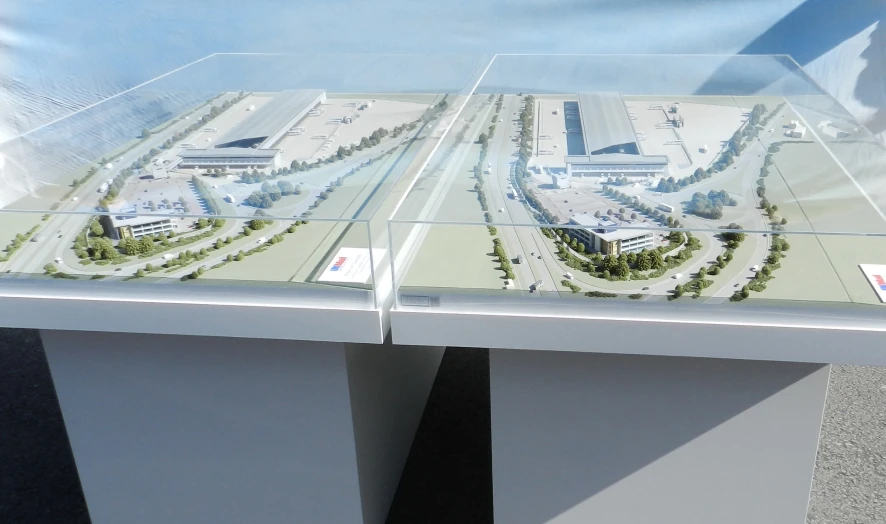

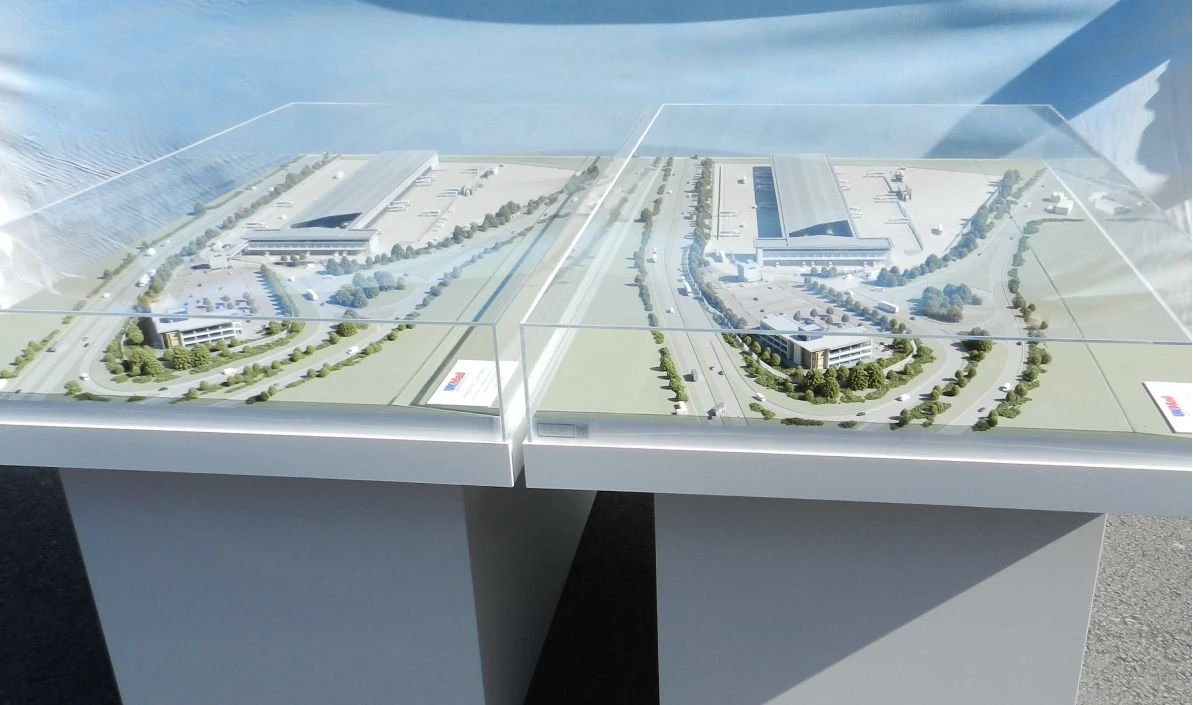

UK Mail ordered two identical site models of their huge new facility at Ryton because they needed an overview model at either end of the site, one in the offices and one in the main warehouse building. Constructing two models at the same time enabled us to offer them a significant saving on the second unit. This model was actually at 1:400 scale which is a good option for a site model because it keeps the base size down but still allows us to show a recognisable level of detail. We were even able to show a good representation of the parcel handling conveyors through the cut-away roof.

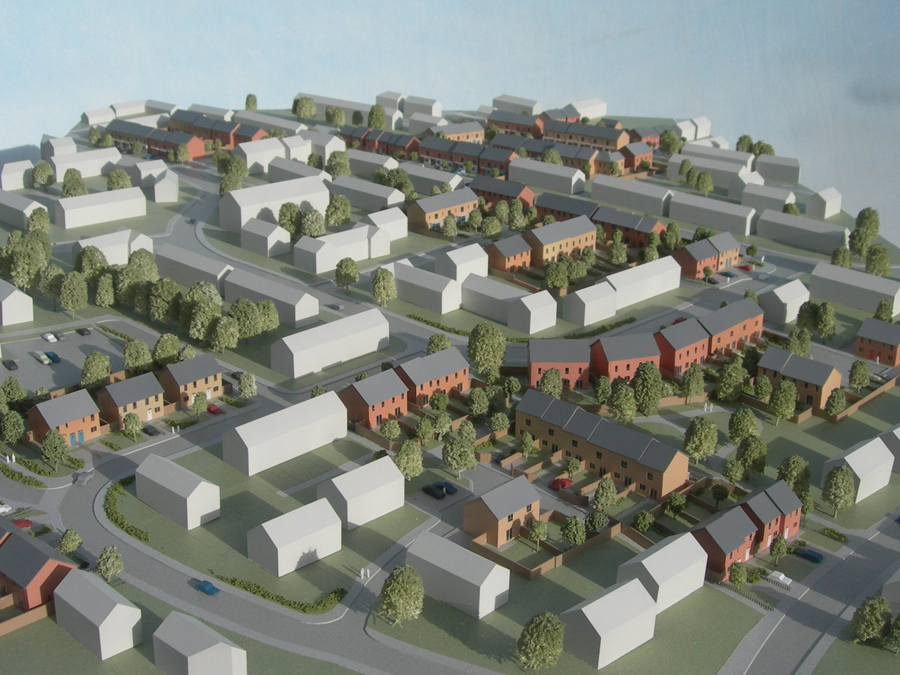

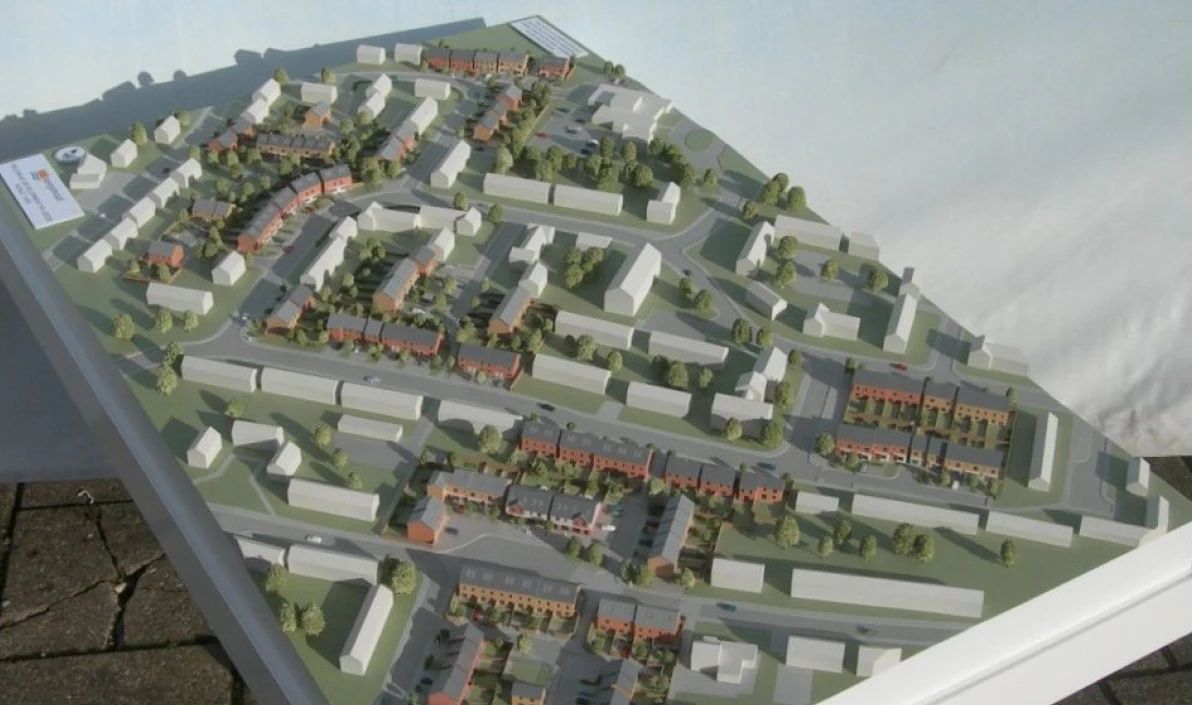

A surprisingly detailed appearance at this small scale is achieved by applying much of the elevation treatments as rub down transfers. A useful and effective technique for certain types of schemes.

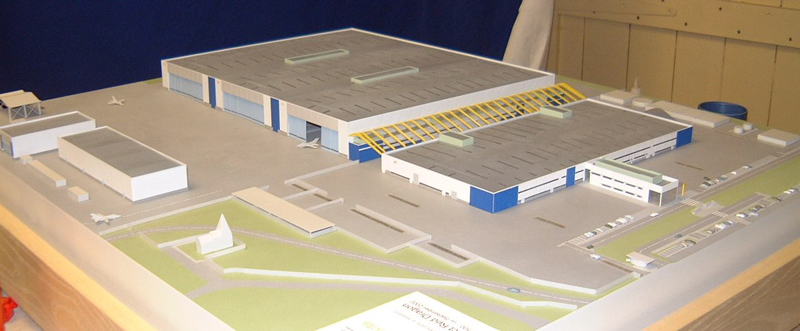

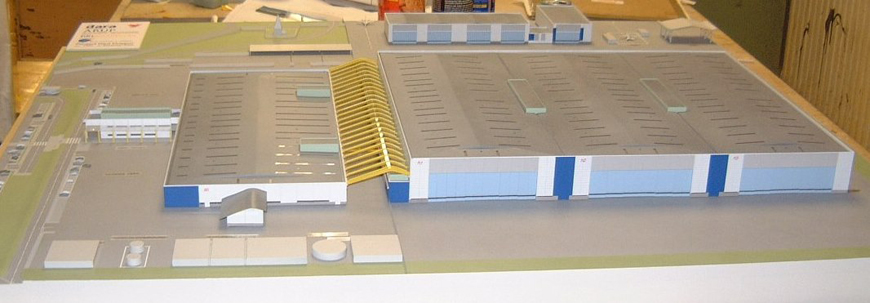

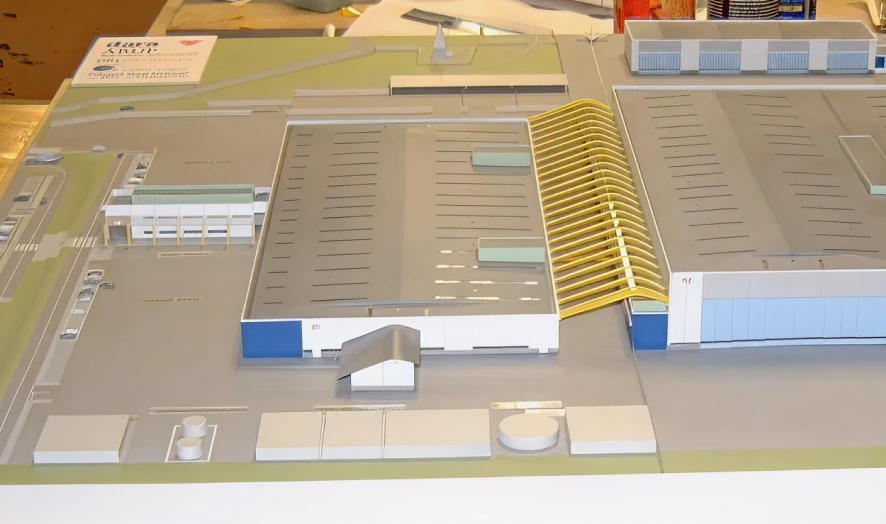

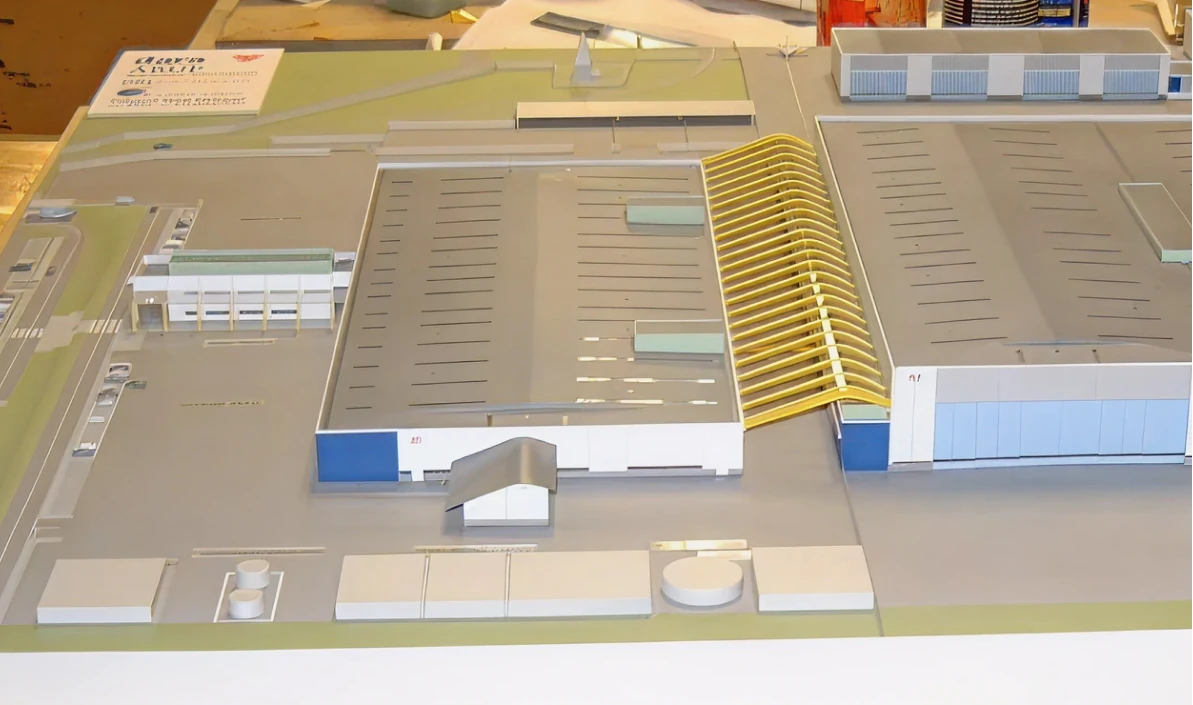

Representing the proposed redevelopment of an existing airbase 1:500 scale was ideal for showing the huge hangar buildings at a recognisable level of detail without the model becoming too large to be easily portable. The stylized use of colour gives a fresh, eye-catching appearance to what are essentially just big industrial buildings.

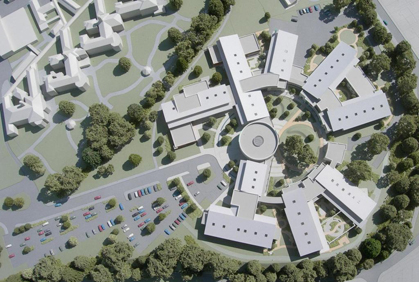

Compact and easily portable, this model gives a good overview of the site layout and the high level of detail in the buildings is a very authentic representation of the proposed materials and finishes.

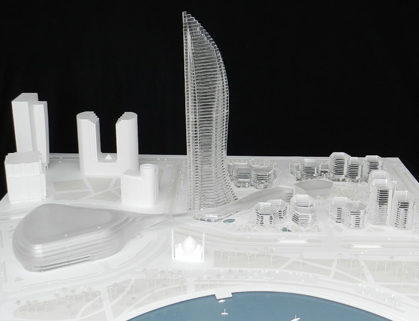

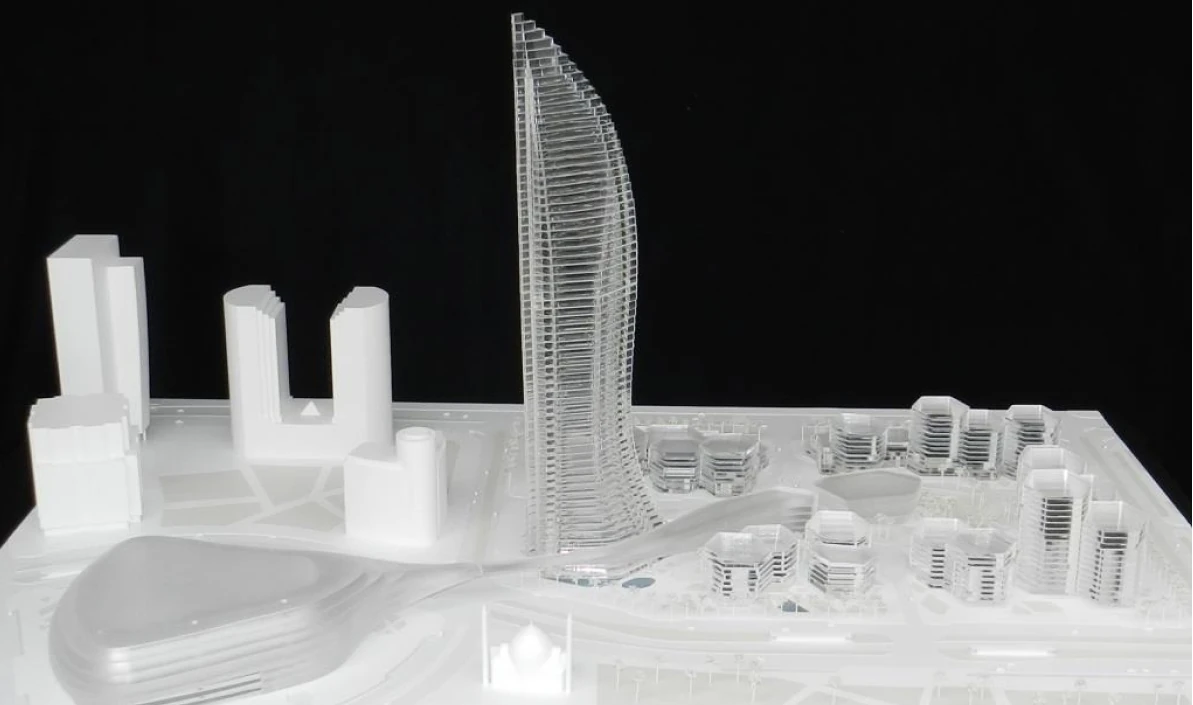

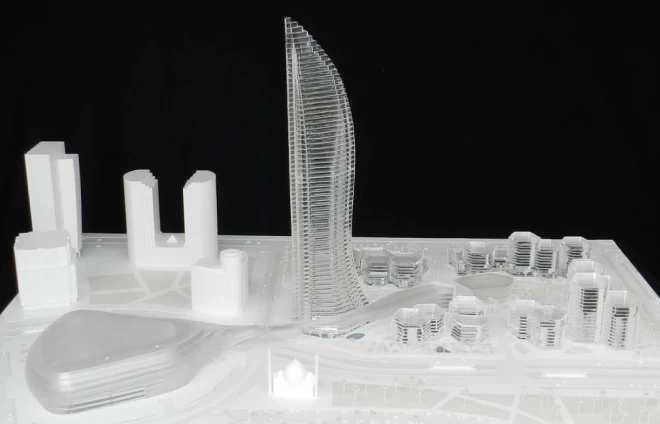

This white styled concept model incorporates clear Perspex blocks to represent the proposed buildings for a major development in Saudi Arabia. The client RTKL, an international firm of architects, needed a company who could complete the model in just two weeks working flexibly with the client as they evolved their design. The model then had to be shipped to Saudi to form the focal point of their presentation for an international competition.

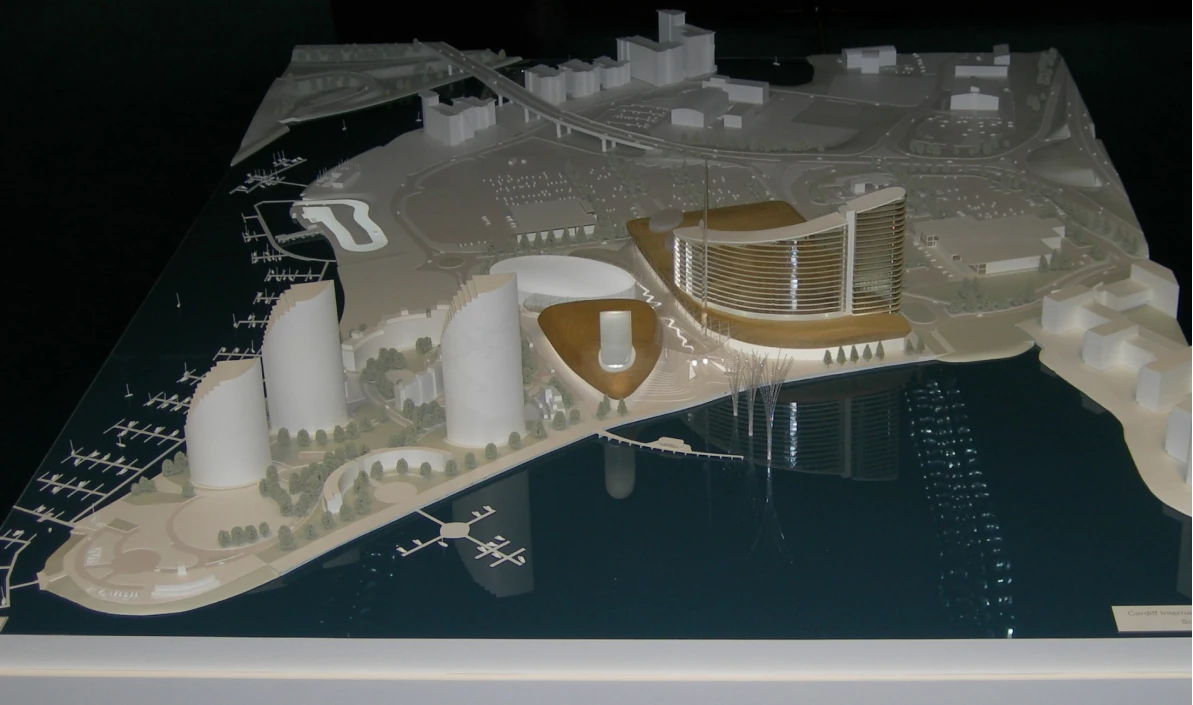

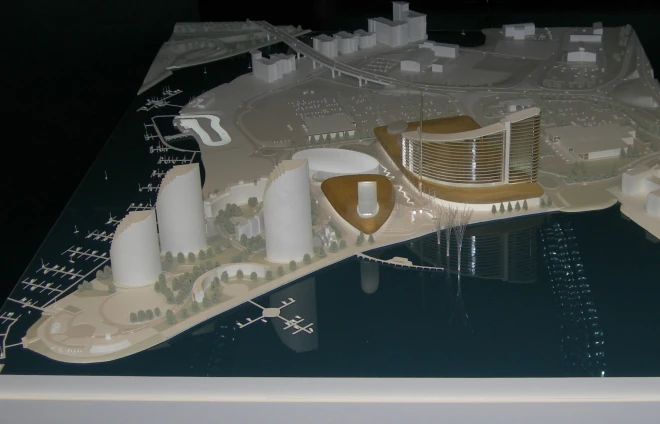

A white stylized, 1:500 scale site model for the proposed international sports village in Cardiff Bay. The architect had a very clear vision for the model and wanted to combine wood, Perspex, white surfaces and bright illumination in what is essentially a concept model with the theme "Snow, ice, fire, water". At approximately 2 metres long x 1.6 metres wide this large model came with a purpose-built, plain white plinth and a sturdy Perspex cover.

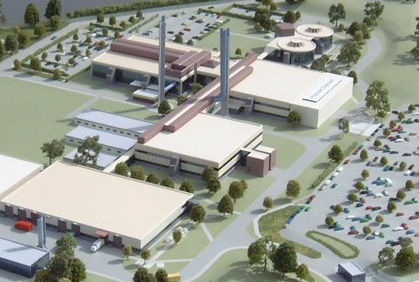

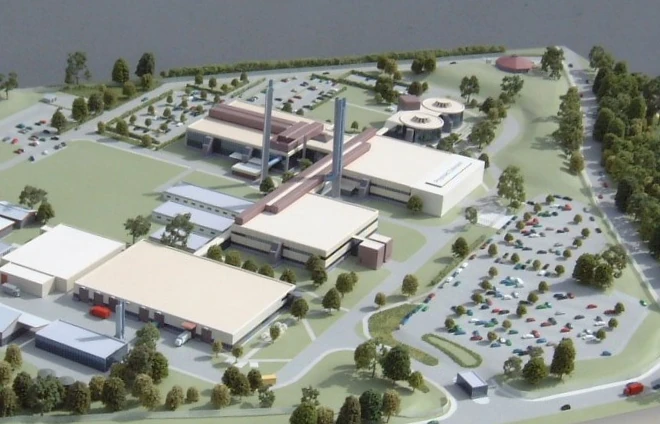

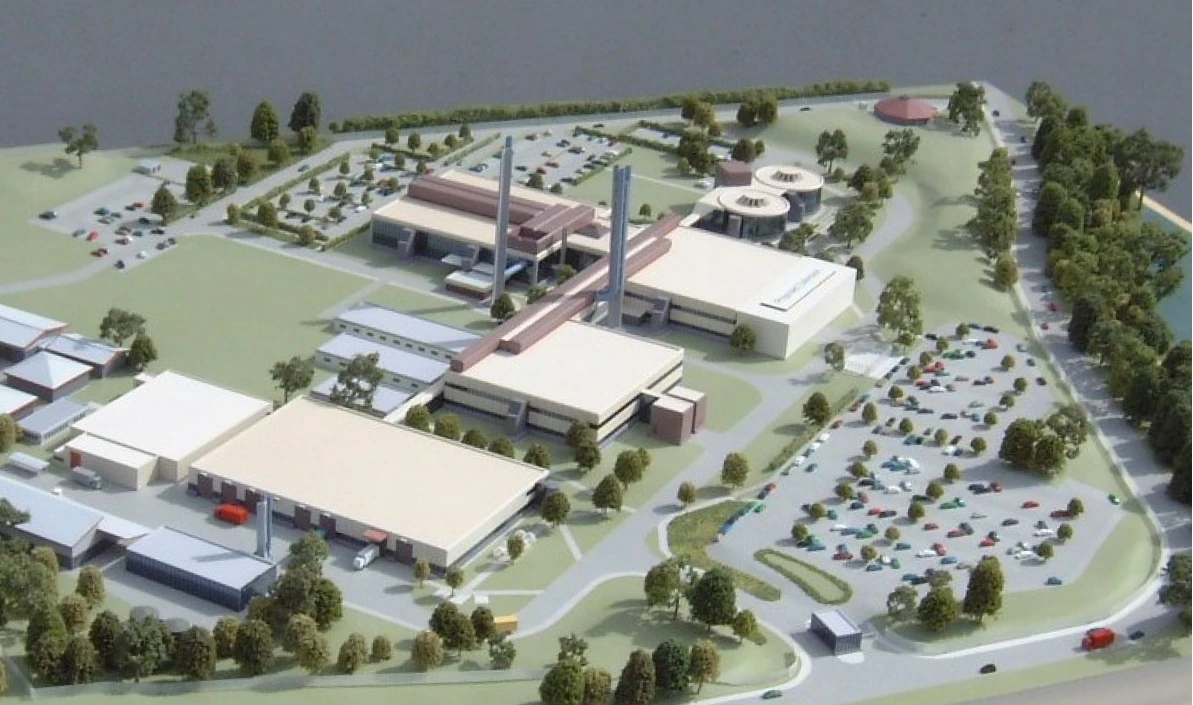

This model is displayed in the reception area of an international company's Research & Manufacturing premises. Its main purpose is as an orientation tool for new staff and visitors to the site.

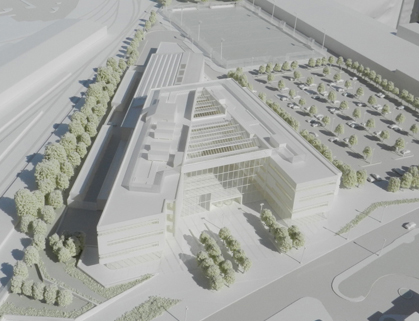

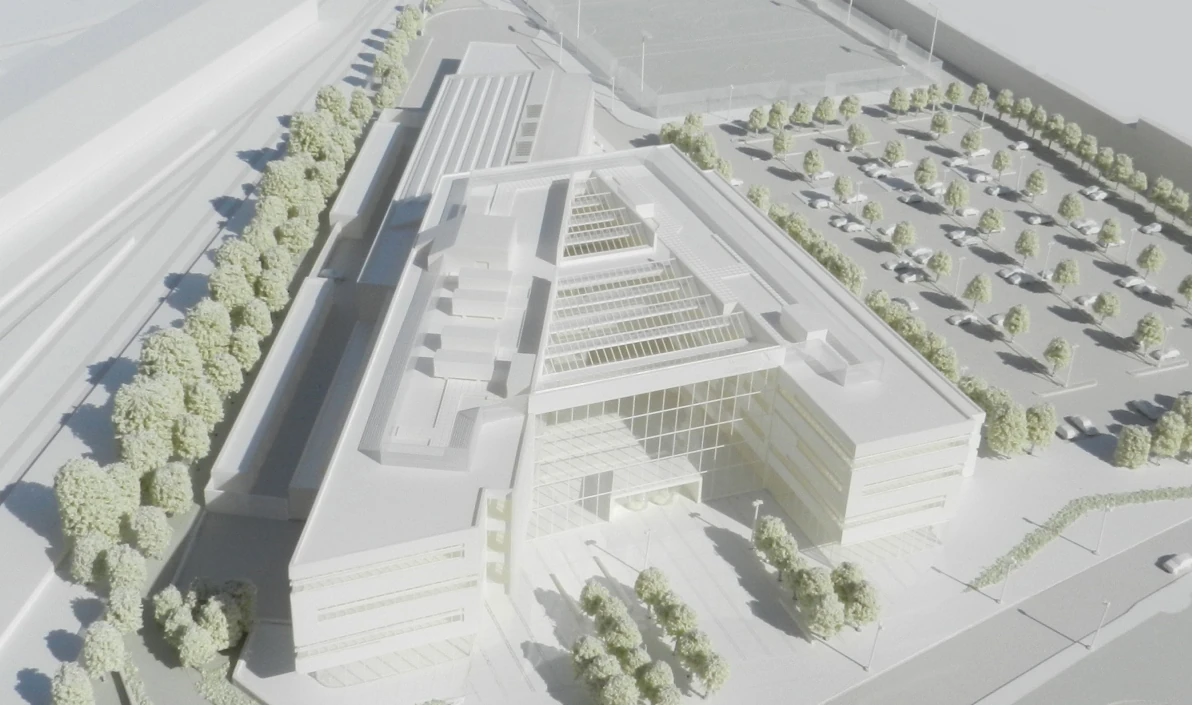

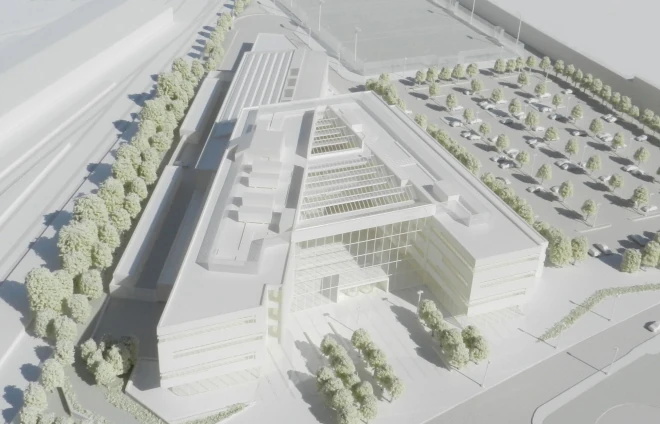

Illustrating a proposed design for a new college, the white styling for this model was chosen deliberately so as not to be too specific about material finishes which were to be finalized at a later date. The purpose of this model was to show a good overview of the site. We also produced a larger scale, more detailed model of the building on its own but still with a white monochromatic finish.
Illustrating a proposed design for a new college, the white styling for this model was chosen deliberately so as not to be too specific about material finishes which were to be finalized at a later date. The purpose of this model was to show a good overview of the site. We also produced a larger scale, more detailed model of the building on its own but still with a white monochromatic finish.
An all white, part model built to illustrate the internal and external spatial arrangement for an extended cafe facility on a former industrial building.
One of the important requirements for this model was to illustrate the extensively landscaped roof gardens which you can just make out in the photo. The client also wanted to show the multi-tiered stacking car park spaces at the rear of the buildings as the extra parking was a big selling feature. This model also incorporated LED lighting which you can see if you click on the "Illuminated" section above.
One of the important requirements for this model was to illustrate the extensively landscaped roof gardens which you can just make out in the photo. The client also wanted to show the multi-tiered stacking car park spaces at the rear of the buildings as the extra parking was a big selling feature. This model also incorporated LED lighting which you can see if you click on the "Illuminated" section above.
