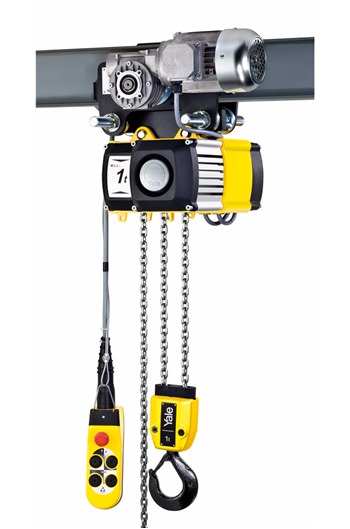

YALE CPV10-4 1000kg 3phase Electric Chain Hoist c/w Powered Trolley
SWL: 1000kg
Falls of chain: 2
Hoist speed: 4mtrs/min
Avaible from 3mtr HOL to 15mtr HOL
Single speed Powered Trolley (18mtrs/min)
The new YALE CPV Electric Chain Hoist combines modern design and technical innovation. A robust construction makes the series a versatile tool for industrial applications. Upper and lower limit switches considerably extend the working life span of the slipping clutch, motor and gearbox
Yale Hoist Features include:-
- Load sprocket and chain guide can easily be inspected or removed, without disassembly of the complete unit
- Designed to FEM 1am. H3 (HMI)
- Main line contactor for increased safety
- Duty cycle 50% ED for single speed
- Electromagnetic spring pressure brake holds the load safely even in the event of power failure
- The externally adjustable slip clutch is designed to guarantee a permanent connection betweem the load and the brake
- Motor classification H3 and protected to IP 55 against ingress of dust and water jets
- Standard operating voltage: 400V, 3Ph, 50hz
- Increased operating safety through 42v low voltage control with encapsulated pendant control to IP 65
- Price includes Chainbag
- Fully tested and certified
For more information on this Yale hoist or any other Yale hoisting products, be sure to contact a member of the SafetyLiftinGear team today.
0117 9381 600
DELIVERY IS 1-2 DAYS FROM DATE OF ORDER (Supplied Direct from Manufacturer Partner)
