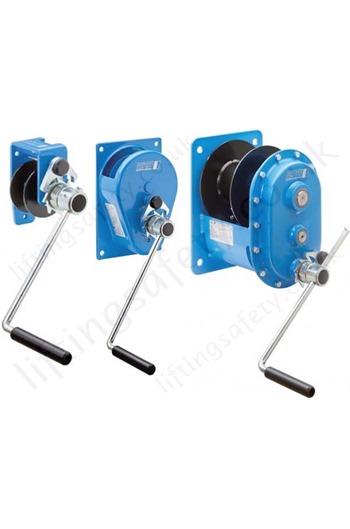

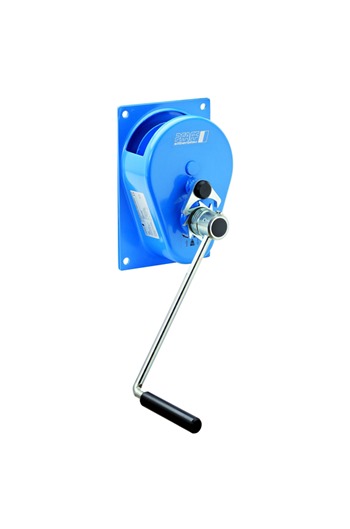

• Pfaff Silverblau MWS Manual Wire Rope Hand Winch With Spur Gear Drive

  The MWS is a high quality Wire Rope Winch designed to be used where no electricity is available or in a dirty environment

  Enclosed gear drive for protection of internal parts, even under tough working conditions

  The Winch has spur gears on roller bearings while the rope drum in on plain bearings

  Quick and easy mounting onto walls, poles etc...

  Compact design

  Self-locking, anti-kickback and adjustable crank handle for fast lifting of smaller loads, resulting in lowest possible handle effort and rapid winding of the rope

  Fitted with automatic load pressure brake for safe holding and extremely sensitive lowering of the load.  Unintentional brare release is prevented even with swinging loads

  These Winches are suit for operation in ambient temperatures of -20°C up to +40°C

  Lifting capacity: 300kg

  Lifting capacity last rope layer: 166kg

  Crank effort 1st rope layer: 6daN

  Ratio: 1:7.4

  Recommended rope diamter: 5mm

  Usuable rope length max: 21mtrs

  Number of rope layes max: 7

  Weight without rope: 10kg

  *** Supplied without Wire Rope ***
