Pewag PLBW Prolift Beta Swivel Lifting Point M10 to M48

More From This Brand

Add to New List

• Product Info

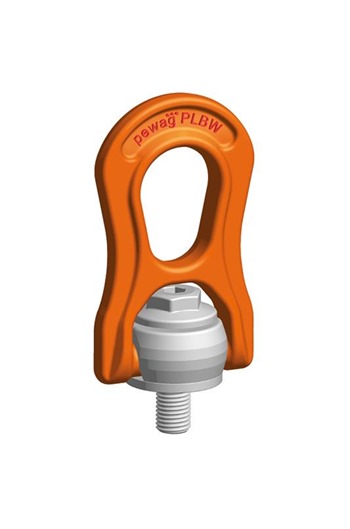

• Pewag PLBW Prolift Beta Swivel Lifting Point

  The PLBW screwable lifting and lashing point is 360° rotatable with a load ring that can be moved through an angle of 180° and can be positioned at any required angle due to its replaceable and patented spring. In the permitted applications, this lifting point offers a five-fold factor of safety

  Each lifting point comes with an individual serial number and is marked with the admissible load capacity for the most unfavourable application mode allowing for an increased load capacity in the case of vertical loads

  PLBW lifting points incorporate a special hexagonal screw made from grade 10.9 material which is interchangeable and secured to prevent loss. The screw is 100% crack tested as well as covered with a chromate VI-free protection against corrosion and marked with the load capacity and thread size. It can be tightened with a hexagon wrench or spanner wrench

  All load capacities, categorised by the type of application, the number of legs and angle of inclination, are contained in a table that forms an integral part of the operating manual included with each lifting point

  Metric thread sizes available: M8, M10, M12, M16, M20, M24, M30, M36, M42, M48

  *** Longer threads available - please contact us for details ***

• Specifications
• Additional Info
  Additional Information

  DimensionsLoading Chart
• Price Breaks
• Pewag PLBW M10 Prolift Beta Swivel Lifting Point 600kg (Net Weight Per Item: 0.35kg):

  Quantity:

  1+

  (£65.08 inc VAT)
  Pewag PLBW M12 Prolift Beta Swivel Lifting Point 1000kg (Net Weight Per Item: 0.37kg):

  Quantity:

  1+

  (£65.82 inc VAT)
  Pewag PLBW M14 Prolift Beta Swivel Lifting Point 1300kg (Net Weight Per Item: 1.03kg):

  Quantity:

  1+

  (£81.70 inc VAT)
  Pewag PLBW M16 Prolift Beta Swivel Lifting Point 1600kg (Net Weight Per Item: 1.04kg):

  Quantity:

  1+

  (£85.96 inc VAT)
  Pewag PLBW M18 Prolift Beta Swivel Lifting Point 2000kg (Net Weight Per Item: 1.07kg):

  Quantity:

  1+

  (£91.73 inc VAT)
  Pewag PLBW M20 Prolift Beta Swivel Lifting Point 2500kg (Net Weight Per Item: 1.08kg):

  Quantity:

  1+

  (£93.66 inc VAT)
  Pewag PLBW M22 Prolift Beta Swivel Lifting Point 3000kg (Net Weight Per Item: 3.50kg):

  Quantity:

  1+

  (£137.88 inc VAT)
  Pewag PLBW M24 Prolift Beta Swivel Lifting Point 4000kg (Net Weight Per Item: 3.60kg):

  Quantity:

  1+

  (£141.01 inc VAT)
  Pewag PLBW M27 Prolift Beta Swivel Lifting Point 5000kg (Net Weight Per Item: 3.60kg):

  Quantity:

  1+

  (£154.93 inc VAT)
  Pewag PLBW M30 Prolift Beta Swivel Lifting Point 6300kg (Net Weight Per Item: 3.70kg):

  Quantity:

  1+

  (£156.72 inc VAT)
  Pewag PLBW M36 Prolift Beta Swivel Lifting Point 10000kg (Net Weight Per Item: 14.30kg):

  Quantity:

  1+

  (£376.14 inc VAT)
  Pewag PLBW M42 Prolift Beta Swivel Lifting Point 12500kg (Net Weight Per Item: 14.70kg):

  Quantity:

  1+

  (£400.34 inc VAT)
  Pewag PLBW M48 Prolift Beta Swivel Lifting Point 15000kg (Net Weight Per Item: 15.00kg):

  Quantity:

  1+

  (£505.93 inc VAT)
