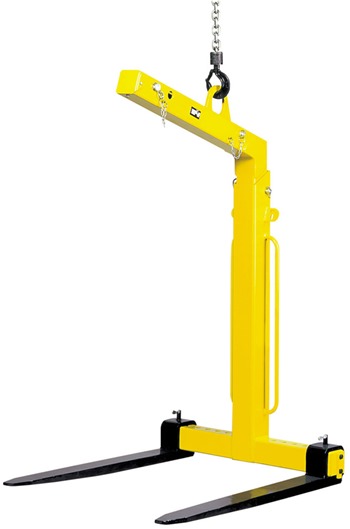

• CAMLOK TKG1.0VHS 1000kg Self Weight Balance Crane Forks

  The TKG-VHS range of Crane Forks are equipped with adjustable tines, adjustable mast height and a self weight balancing system

  Crane Forks with self weight balancing tend to point their tines upwards when being transported, this prevents the load from unintentionally slipping off the tines

  The self weight balancing mechanism returns the lifting point to the unloaded position when the load is set down

  For efficient operation of this mechanism the load be greater than 20% of the working load limit

  • Factor of safety 4:1
  • Maintenance free
  • Highly visible safety colour
  • For transporting rings or coils, simply push fork tines together
  • Easily adjustable tines for all pallet sizes
  • Supplied with chain for securing the load

  Model: TKG1.0VHS

  WLL: 200-1000kg

  Adjustment of tines: 350-900mm

  Useable height: 1100-1600mm

  Length of tines: 1000mm

  Section of tines: 100x30mm

  Overall height: 1420-1920mm

  Weight: 140kg
